Online tool for managing architectural descriptions
Use AFD Tool in the first phase of the software development process.

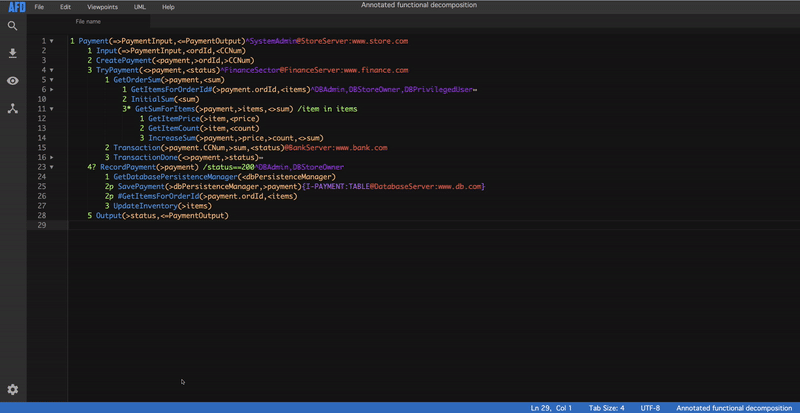

Describe and manage architecture of a system through defining functionalities of a system.

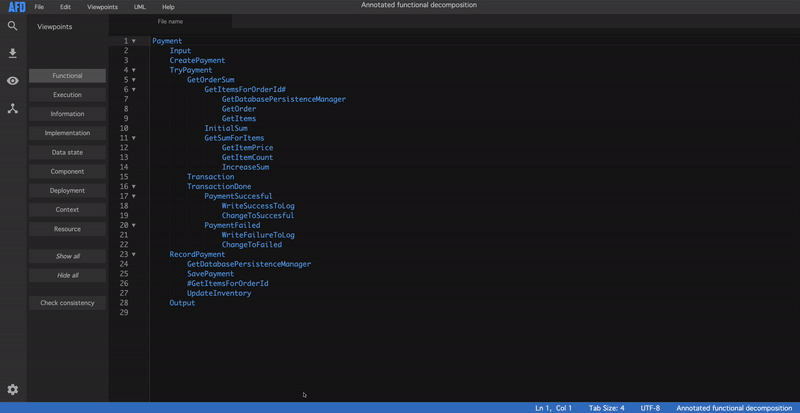

Observe from different Viewpoints
Describe and manage architectural descriptions through different viewpoints.
Observe an architectural description from a certain viewpoint of interest, by hiding parts of architectural description that is out of focus.

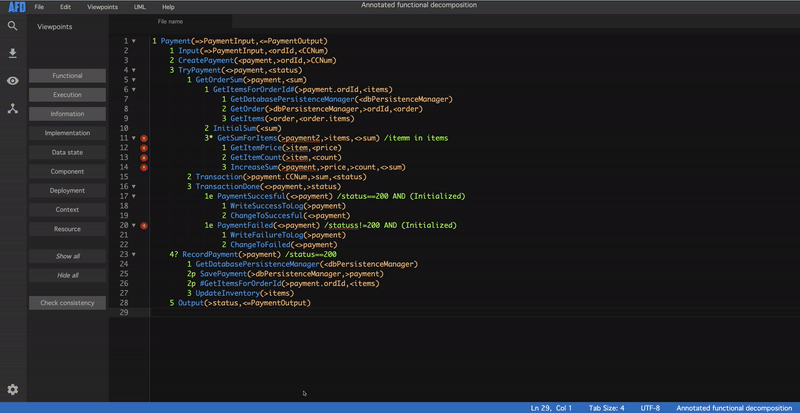

Check for inconsistencies
Automatically detect inconsistencies between the views of the architectural description.
Manually resolve detected inconsistencies in AFD Tool.

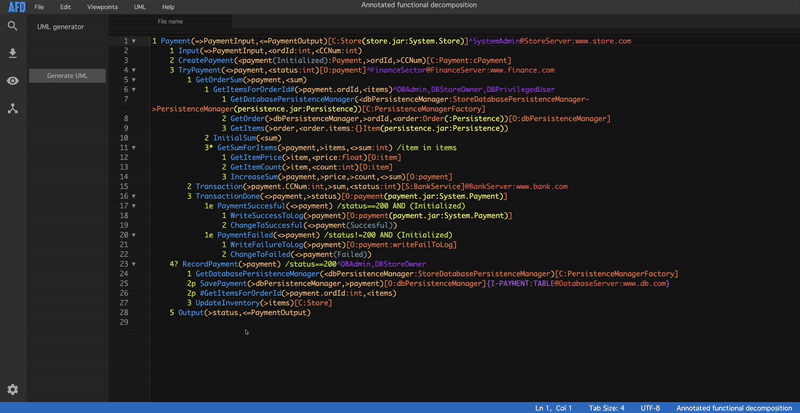

Generate UML diagrams
Generate UML diagrams based on the previously described architecture of a system.
Generate class, component, deployment, activity, sequence, state and use-case UML diagrams.
